Natural Convection Cooling Heat Sink

The main type of natural convection heat sink is extruded heatsink, it's manufactured by extruding the aluminum profiles and machined the specification as the requirement of the electronic devices. Natural convection is one of the most efficient thermal options for cooling the electronic components.

Heat convection is that the heat flows away from the heat source to cold medium by the fluid travelling, Natural convection means the fluid travelling is not caused by the external force but made by the natural environment, when the air flows to the heat sink and get expanded, the density of air would become less and the hot air will rise up and take away the heat from heat sink.

How to design a good natural convection heat sink?

1, Fins design

Fin is a critical part for a heat sink to increase the fluid contact surface area to dissipate the heat, in theory, the more fins a heat sink has, the more heat can be dissipated, but for natural convection, it doesn't make sense, when the fin density become too high, the air pass through the heat sink will be blocked, and need a force to push the air through the channel, so the fin density and thickness design is important.

2,Orientation

As the fluid flowing is caused by natural circumstances like buoyance and gravity, so the direction of heat sink is non neglected, it will has a significant influences in thermal resistance.

3, Thermal emissivity

For natural convection process, there is no forced air to cool the electronics, radiation is a critical heat dissiaption method, the main elements affect the emissivity include material property, temperature gradient, color, and roughness.

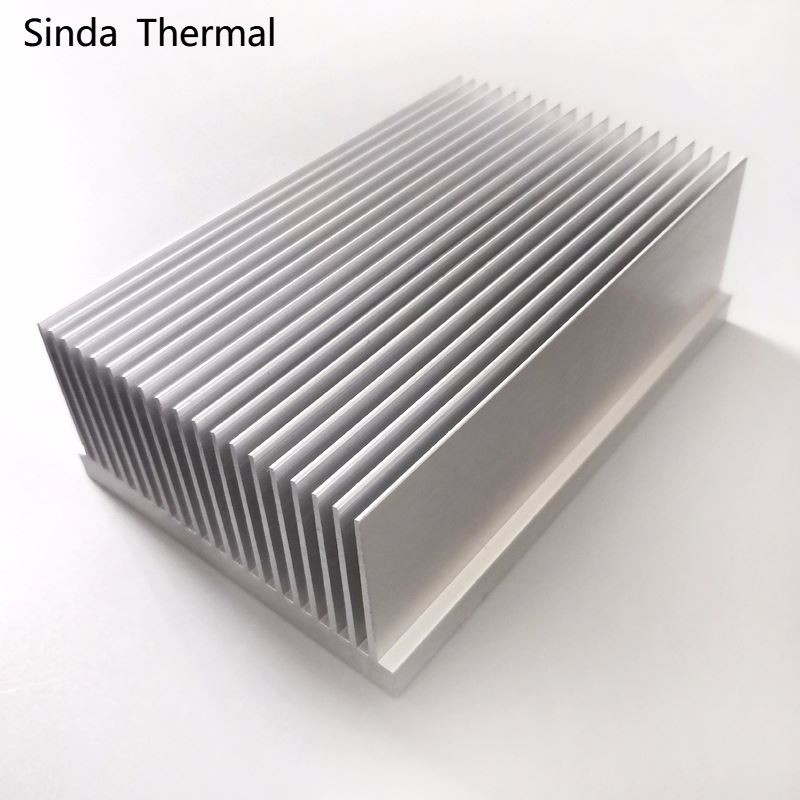

Product images

Our factory introduction

Sinda Thermal offers a wide range of heat sinks including standard and custom heat sinks, our factory is consist of thermal experts and experienced engineers so that we can provide the optimal thermal solutions for our global customers, and produce the excellent quality products. Also we possess many equipment and facilities to ensure the production ability and capacity. Sinda Thermal has over 7 years thermal experiences and a lot of technologies to supply our customer.

FAQ:

Q: How long is your delivery time?

A: For sample order, usually 1-2 weeks, for production order, the lead time is 3-4 weeks.

Q: Can you offer me some prototypes before hard tooling kick off?

A: Yes, Prototypes can be machined and shipped, but it need to be paid.

Q: What's the MOQ for your heat sinks?

A: We don't set up MOQ, 1pcs is available.

Q: Can you help me to design a heat sink based on my requirements?

A: Yes, OEM and ODM are available.
