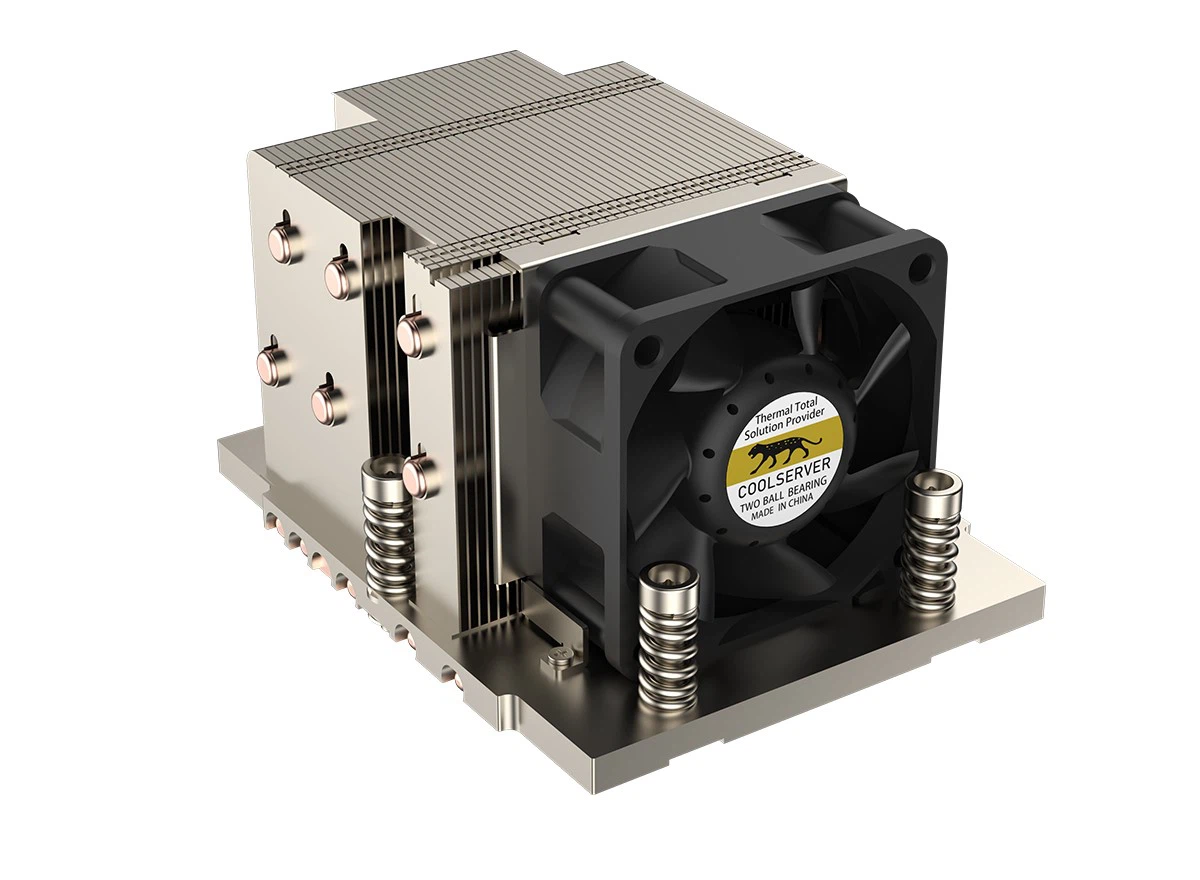

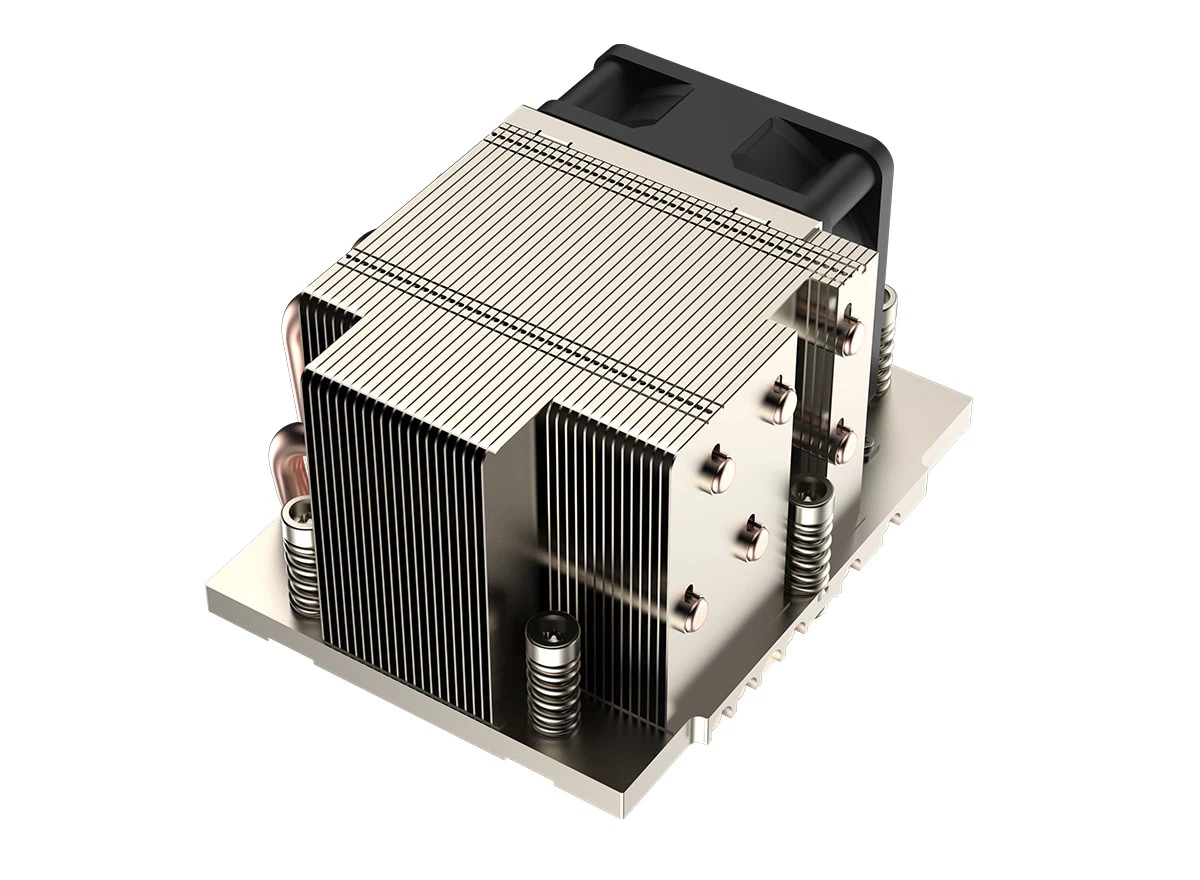

AMD SP5 2U CPU Fan Cooler Heatsink
Why Choose CPU Fan Cooler for High Power applications The design of some CPU heatsinks is really exaggerated. In addition to conventional models, many are equipped with large cooling fans of 8cm or even 12cm, so that the air volume is larger and the cooling effect is better. However, this kind...
Product Introduction
| Part Number | SD-SP5-2US22 | Fan Voltage | 12V |
| CPU Socket | AMD SP5 | Fan Speed | PWM 2600-8000RPM |
| Server System | 2U Server | Noise | 52.5dBA (MAX) |
| Heatsink Dimension |
118mm*92.4mm*66.3mm |
Air Flow | 47.2CFM (MAX) |
| Heatsink Material |
Aluminum Base, Copper Plate Aluminum Fin , D6 Copper Pipe*6pcs |
Fan Connector |
4 pin PWM |
| Surface Treatment | Nickel Plated | Fan Bearing | Double ball bearings |
| Thermal Design Power | 380W | Warranty | 1 Year |
Why Choose CPU Fan Cooler for High Power applications
The design of some CPU heatsinks is really exaggerated. In addition to conventional models, many are equipped with large cooling fans of 8cm or even 12cm, so that the air volume is larger and the cooling effect is better. However, this kind of fan has high requirements for the installation environment.
How Does The Cooling Systems Works
The CPU transfers the heat to the heatsink base , there is liquid in the heat transfer copper pipe, which disperses the heat in the heat transfer base and transfers it to the cooling fins. Finally, the fan blows away the heat on the cooling fins by force air cooling. Such continuous circulation provides good thermal performance for the heatpipe soldering heatsink.
Why Choose US
1. Standard heatsink in stock , ready to provide sample for testing anytime;
2. No extra tooling need to be paid for prototype samples or mass production;
3. Shorter lead time and quick respond to customer requirement;
4. Competitive sales price to customer for lower production cost;
5. Professional and high efficiency engineering service support.
Company profile
Sinda Thermal factory was Founded in 2014, and located in Dongguan City, China, we are providing varieties of CNC machining parts, Thermal heatsinks and precious metal parts .
Sinda Thermal is devoted to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, Madical and Military. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9000 and ISO9001. Our company has been a partner with many customers for good quality, excellent service and competitive price. We are a leading heat sink manufacturer for the global customers .
