How does heatsinks cooling down the IGBT device

   Insulated Gate Bipolar Transistors (IGBTs) are critical components in many modern electronic devices, from electric vehicles to renewable energy systems. However, as these devices become increasingly powerful and compact, managing the heat they generate has become a major challenge. This is the latest progress in IGBT cooling, especially where the use of needle finned radiators plays a role.

    The heat generated by IGBT is a byproduct of its operation. If this heat is not effectively managed, it may lead to equipment failure, reduced efficiency, and shortened lifespan. Traditional cooling methods, such as forced air and liquid cooling, have been used to solve this problem. However, these methods have limitations, especially in high-power applications where the heat generated may be significant.

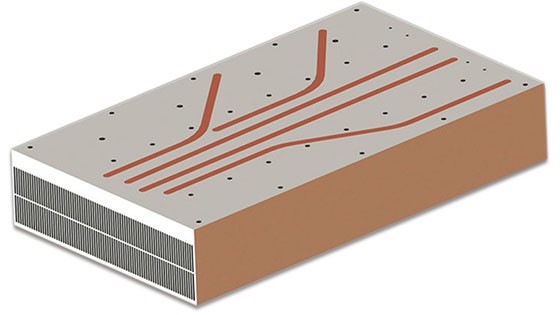

    Therefore, engineers have specially designed a cooling scheme for IGBT equipment, and the addition of heat sinks makes the cooling system of IGBT more efficient and reliable. These devices are essentially metal structures with many protruding pins on their surfaces, providing a more efficient solution for cooling IGBTs. The pins increase the surface area of the heat sink, thereby achieving more effective heat dissipation. This is particularly beneficial in high-power applications, as traditional cooling methods may struggle to keep up with the heat generated.

    The impact of heat sinks on IGBT cooling is significant. They have been proven to reduce the operating temperature of IGBTs by up to 20%, extend their service life, and improve their efficiency. This is a significant progress, especially in industries such as electric vehicles and renewable energy, where the reliability and efficiency of electronic devices are crucial. In addition, the needle finned heat sink has a compact structure and is lightweight, making it very suitable for use in equipment with extremely valuable space and weight. Compared to traditional cooling methods, they require less maintenance, thereby reducing the overall cost of ownership.

    The emergence of heat sinks has completely changed the field of IGBT cooling. They provide more efficient and effective solutions for managing the heat generated by these devices, improving their performance, and extending their lifespan. As electronic devices become increasingly powerful and compact, the importance of effective thermal management will only increase. The advancement of radiator technology represents an important step forward in this regard, indicating that electronic devices are not only more powerful, but also more reliable and efficient.
