The advantage of air bearing heatsink

   In addition to the ultra-thin shape of the air bearing heat exchange heatsink, the heat dissipation efficiency is also amazing because of the special structural design. The fan blade itself is a heat sink, which accelerates the cooling in high-speed operation. The efficiency is much higher and quieter than the conventional heatsink. It is very suitable for ultra-thin equipment and is also of great significance to the industrial field.

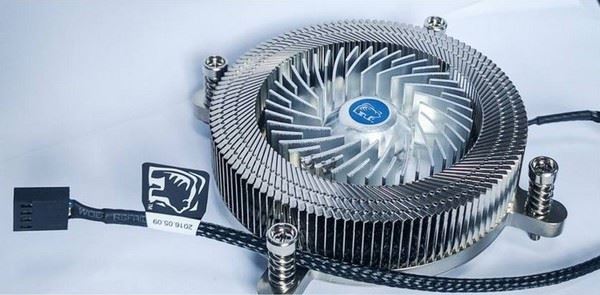

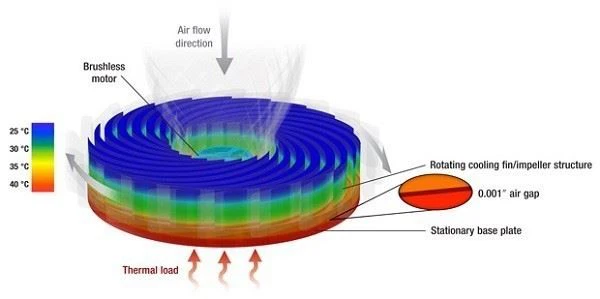

   Its shape design is very special, and a variety of color matching options are available. The outer ring is a heat sink with a special design angle, and the central part, that is, the conventional fan, is also a heat sink fin. The design principle is well understood. The cold air is "thrown" from the center to the surrounding through the centrifugal effect, in order to thin the static air boundary layer on the surface of the heat sink fins that affects the heat dissipation efficiency.

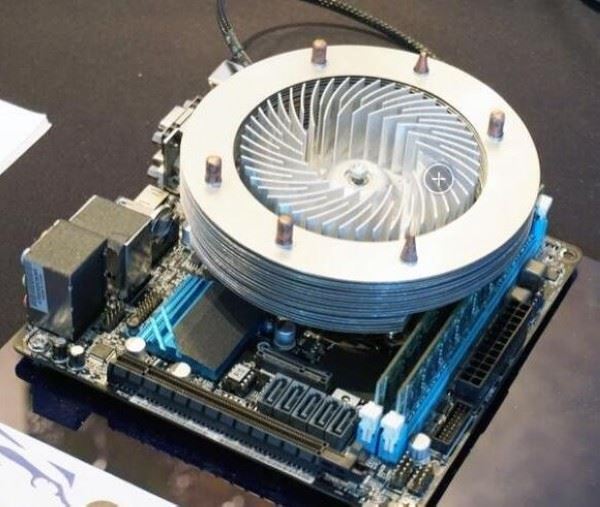

 The high-speed rotation of the center has the advantage of large wind pressure of the turbine. Part of the inhaled air is cooled by its own heat sink. However, due to the high-speed rotation, a turbulence will be formed on the heat sink of the outer ring, which greatly improves the heat dissipation efficiency. There is no need to worry that this will lead to excessive noise, but after optimization, the noise of the radiator has been minimized, but the efficiency is still amazing. And  it is easy to support the cooling of  Intel skylake processor of  70W TDP .
