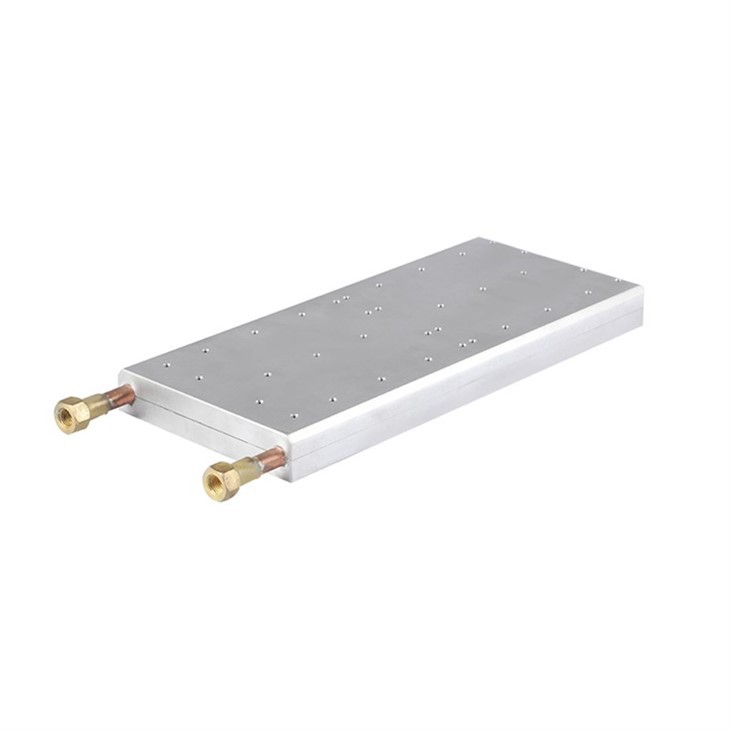

Water Cooled Heatsink For IGBT

  Water-cooled heat sinks for IGBTs (Insulated Gate Bipolar Transistors) are key components of modern electronic and power systems. The heat generated by IGBTs during operation can be considerable and, if not managed effectively, can adversely affect the performance and life of the device. Liquid cooling heatsinks are an effective solution to dissipate heat and ensure IGBT operation within the optimal temperature range.

  The concept of liquid cooling heatsink is based on the principle of transferring heat from the IGBT to a circulating water system. This is achieved through a network of channels and fins within the heat sink, which help transfer heat from the IGBT to the water. The heated water then circulates to the heat exchanger and the heat is dissipated into the surrounding environment, causing the water to return to the radiator at a lower temperature to continue the cooling process.

  One of the main advantages of IGBT water cooling heat sinks is their high thermal performance. Water has a higher heat capacity and thermal conductivity than air, allowing it to dissipate heat more efficiently. This means that water-cooled heat sinks can effectively manage higher thermal loads and maintain IGBTs at lower operating temperatures than traditional air-cooled heat sinks.

  Another advantage of water-cooled heat sinks is their ability to provide even cooling over the entire surface of the IGBT. Circulating water ensures even heat dissipation, preventing hot spots that can cause thermal stress and reduce equipment reliability. This uniform cooling also increases the IGBT's power density and improves performance.

  In addition, water-cooled heatsinks also have the advantage of reducing noise. Air-cooled heat sinks often require high-speed fans to provide adequate cooling, resulting in increased noise levels. In contrast, water-cooled systems operate quietly and are particularly useful in applications where low noise levels are a priority.

  The use of water-cooled heat sinks for IGBTs also contributes to more compact and lightweight system designs. Water cooling is more thermally efficient and allows for the use of smaller radiator designs, thus reducing the overall footprint and weight of the cooling system. This is advantageous in applications where space and weight constraints are critical.

  In addition to these benefits, water cooling radiators offer the flexibility to customize and integrate into a variety of system designs. Radiators can be customized in different materials and configurations to meet specific application requirements. This adaptability makes water-cooled heat sinks suitable for a variety of industrial, automotive and renewable energy applications using IGBTs.

  IGBT water cooling heat sinks provide an efficient solution for managing the heat generated by these critical electronic components. Its excellent thermal performance, uniform cooling, quiet operation and flexibility make it ideal for applications requiring efficient heat dissipation. As technology continues to advance, the use of water-cooled heat sinks is expected to become increasingly common in the design of high-performance and reliable electronic systems.

Varieties of heat sink

Thermal simulation

Factory and workshop


Certificates

  Sinda Thermal is a leading thermal manufacturer in China, our factory was founded in 2014, and located in Dongguan city, China, we are offering varieties of heatsinks and other precious metal parts. Our plant possesses 30 sets advanced and high precious CNC machines and stamping machines, also we have many testing and experiment instruments and professional engineering team, so our company can manufacture and provide high quality products with high precision and excellent thermal performance. Sinda Thermal is commited to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, and Madical. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9001 and ISO14001. Our company has been a partner with many customers for good quality, excellent service and competitive price. Sinda Thermal is a great heat sink manufacturer for the global customers .


FAQ
1. Q: Are you a trading company or manufacturer?
A: We are a leading heat sink manufacturer, our factory has been founded over 8 years, we are professional and experienced.

2. Q: Can you provide OEM/ODM service?
A: Yes, OEM/ODM are available.

3. Q: Do you have MOQ limit?
A: No, we don't set up MOQ, prototype samples are available.

4. Q: What's the lead time of the production?
A: For prototype samples, the lead time is 1-2 weeks, for mass production, the lead time is 4-6 weeks.

5. Q: Can I visit your factory?
A: Yes, Welcome to Sinda Thermal.
