OEM Aluminum/Aluminum Heatsink Extrusion

We have exquisite technology, strong technical force, strict scientific management and perfect inspection system and testing equipment, to ensure that we can provide customers with high quality Laptop CPU Heatsink, Thermosyphon CPU Cooler, Stamping Plate. We insist on putting the health and safety of our employees as our top priority, treating every employee with respect and equality, and safeguarding and protecting the legal rights and interests of our employees. We take the production of high quality products as our mission, customers and our mutual success as our objective, and striving to build a world-class brand. The company has a grand strategic blueprint, a lofty mission and lofty ambition, and is constantly committed to development.

Please click here to visit our factory

 For an air-cooled heat sink module, its effect not only depends on the air volume of the fan, but also on the design of the heat sink. A properly designed heat sink can make the device run stably by only relying on the ambient airflow when the device is not overclocked and not continuously loaded. It can be proved that the importance of the heat sink, and the heat dissipation effect of the heat sink is inseparable from its manufacturing process.

  There are five main types of heat sinks which are classified by manufacturing process

1. Stamping heat sink: copper or aluminum can be stamped into the desired shape. Usually used in traditional air-cooled electronic devices, mostly to provide limited thermal performance for low-power devices. Stamped heat sinks are ideal for mass production due to the use of advanced dies and high-speed stamping technology.

2. Aluminum extrusion heat sinks: This heat sink can be used for high power applications. Aluminum extrusion with a specific cross-sectional shape can be formed by extrusion molding, and subsequent processing, such as cutting, machining, etc., can be proceeded. Omni-directional, rectangular pin fin heat sinks, and incorporating serrated fins can be formed by cross-cutting, which can improve heat dissipation efficiency by 10% to 20%, but extrusion of this cross section reduce the extrusion speed. The extrusion molding method also has certain limitations, such as the ratio of the fin height to the fin spacing, and the thickness of the fins, which limit the selection range of design parameters. Usually, the heat sink made by the conventional extrusion molding method, The ratio of fin height to pitch is up to 10, while the minimum fin thickness is 0.8mm.

3. Soldering/assembling fins heat sink: Most air-cooled heat sinks have the limitation of convection environment. The increase of heat sink fins will significantly improve the overall heat dissipation performance of the heat sink. This high-performance heat sink is The fins are soldered to the base with  by using thermally conductive soldering paste. Through this process, the ratio of the height and spacing of the fins can be increased to 20~40, which is very convenient in limited space. Greatly improves the ability of the heat sink to transfer heat to the air.

4. Casting heat sink: Using a casting mold, and aluminum, copper or bronze heat sinks can be processed to die casting heat sink under vacuum or normal conditions. This technique is typically used to process heat sinks with high density fins or pin fins, which provide the best heat transfer performance in high-velocity airflow.

5. Skiving fin heat sink: This kind of technology is to use a skiving machine to peel the fins from the aluminum or copper base, this kind of heat sink allows high fin density and thin fin geometries so it can offers better thermal performance than extruded heat sink. Compared with extruded heat sink, skived fin heat sink has no limit of fin height and space ratio, and it has no expensive tooling cost which make it very convenient and flexible for prototype build.

For this article, we are introducing the aluminum extrusion heat sink, which is the most widely used heat sink type in the thermal industry.

Specification:

1. Produces from aluminum 6063 or other aluminum alloy

2. Rohs complaint

3. Dimensions can be customized

4. Black or clear anodizing, also other specify surface treatment

5. No MOQ limited

6. Lead time is 3-4 weeks for mass production, lead time of prototype is 2-3 weeks.

Features & Details:

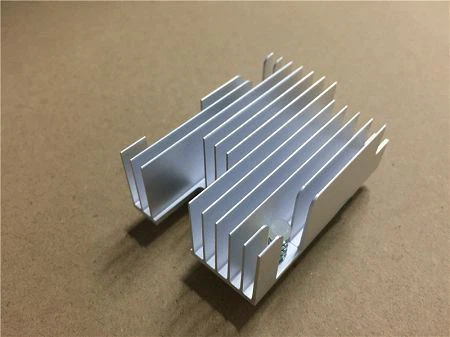

Aluminum extruded heatsinks with black anodizing and clear anodizing.

Benefits & Advantages:

● Professional and creative design team to provide varieties of heatsink designs.

● Our factory has adequate facilities and experiences in manufacturing all kinds of heatsinks and components.

● We have the mature process to produce the cooling products, so we can supply the best price and quality.

● Rapid response and flexible solutions

Certificates:

FAQ:

Q: Are you a trading company or factory?

A: We are factory.

Q: What’s your main products?

A: Aluminum extruded heatsinks, CPU heatsinks, Liquid coolings.

Q: What’s the lead time?

A: The lead time of mass production is 3-4 weeks, and the heatsink sample is 2-3 weeks.

From raw materials to finished products, each of our OEM Aluminum/Aluminum Heatsink Extrusion has undergone rigorous testing in terms of safety and efficiency. Our company has advanced production equipment, professional technical personnel and high-quality management team. Our company in line with the supremacy of credibility, in line with the business purpose of serving the public with sincerity, so that the enterprise has a stable development.
