Aluminium Skiving Fin Heatsink
Aluminium Skived Fin heatsinks can be an alternative to extruded heat sinks when looking for fin density parts which can’t be made by extrusion technology, or can be the alternative to fin-brazing or fin-bonding parts as well to achieve high performance.
Product Introduction
Aluminium Skived Fin heatsinks can be an alternative to extruded heat sinks when looking for fin density parts which can’t be made by extrusion technology, or can be the alternative to fin-brazing or fin-bonding parts as well to achieve high performance.
Aluminium Skived Fins are made by using series of knives that literally shaves fins up from extruded aluminum base. The process of slicing and standing fins up at a time can create an extremely high fin-gap aspect ratio, then the top of fins will be cut to a uniform height.
Product Parameters:
Materials are Aluminum, Max/Min Parameters are according to the capacity of skiving machine.
Parameters | AL 1060/1070-O | AL 6063-O |
Fin Thickness: | 0.2~2mm | 0.2~2mm |
Max Fin Height: | 120mm | 70mm |
Max Length * | 1300mm | 1300mm |
Max Width * | 500mm | 220mm |
Thermal Performance:
Material Model No. | Thermal Conductivity (W/ mk) | Thermal Expansion (10^ 6/C) |
1060 | 234 | 23.6 |
6061-T6 | 167 | 23.6 |
6063-T5 | 209 | 21.8 |
ADC12(A384) | 96 | 21.1 |
Typically, skiving fin uses Al1060 which has the best thermal conductivity among most of aluminum alloy to get the better thermal performance. And it has very good reliability that is the same as extrusion heatsink
Advantages & Benefits:
1. Can get much more fins due to much higher fin gap ratio
2. Better performance with material changing
3. Can set different fin density in one heatsink
4. Introduce more design flexible with fin cut-out

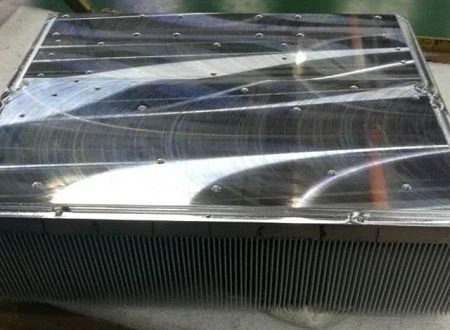

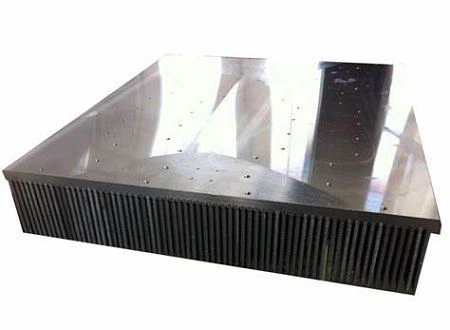

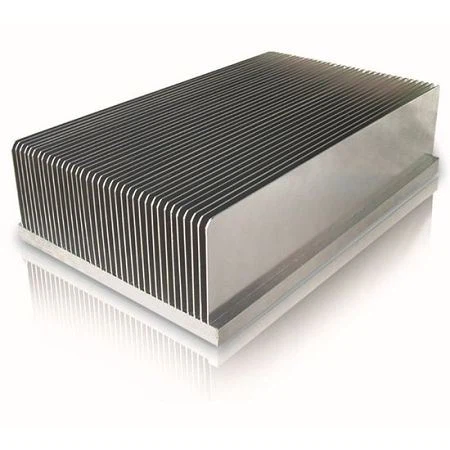

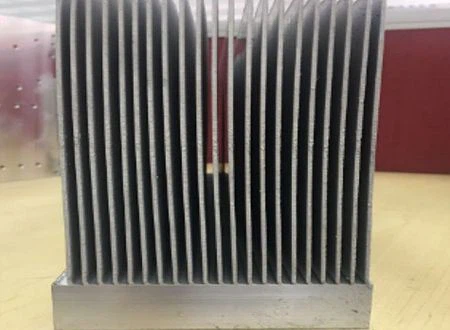

Product Exhibition:
 |  |
 |  |
 |  |
FAQ:
Q: Where is your company locate?
A: Sinda Thermal locate in DongGuan, China, we‘re professional heatsink module manufacturer.
Q: Does this sample require tooling cost?
A: There’s no tooling cost for sample build or mass production.
Q: How can I get the quotation for my product?
A: Send us your drawings with specifications, 3D drawings are much welcomed for full product review.
Q: What’s the lead time?
A: For small quantity demand, we can ship out in about 10 days, for large quantity demand, please contact us for double check.
Q: What’s your payment terms?
A: For new customers, we require T/T in advance; For long-term business, this can be negotiated.
