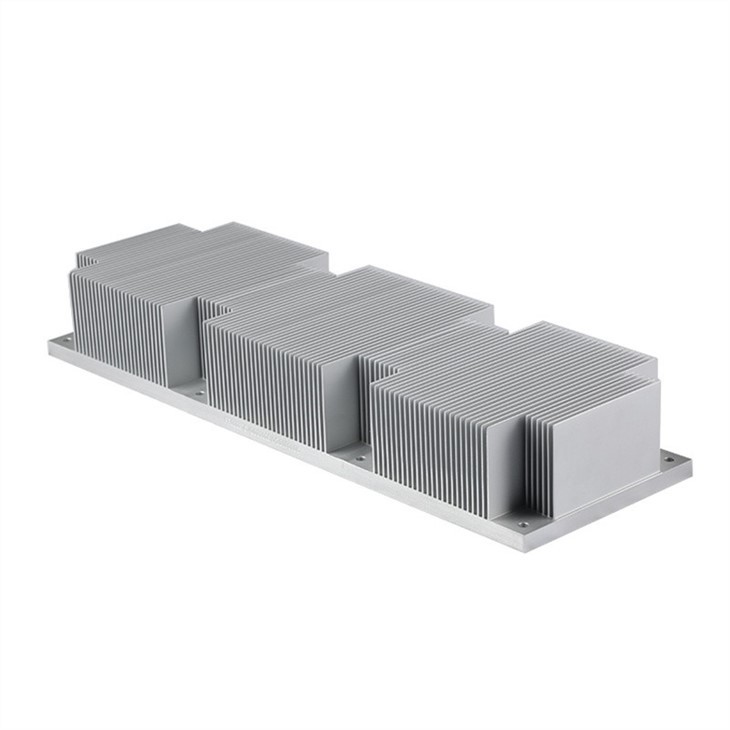

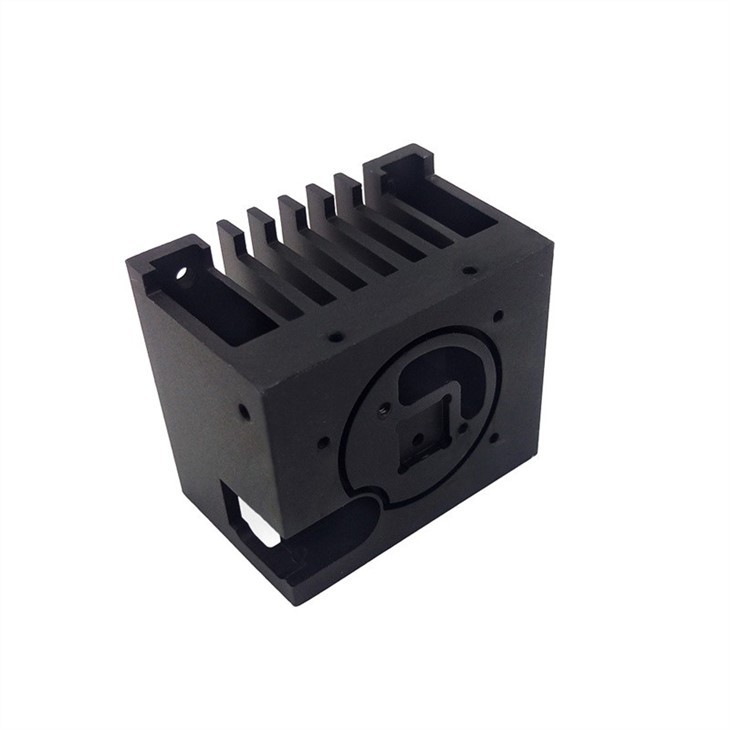

Aluminum Passive Heatsinks

     Aluminum heatsink is a type of passive cooling system used in various electronics applications to cool down the heat generated by electronic components, they are designed to promote the transfer of heat away from the component to prevent damage and ensure reliable performance. Aluminum heatsinks are widely used in personal computers, laptops, servers, and other electronic devices.

1. Extruded Aluminum Heatsinks

Extruded aluminum heatsinks are the most common type of aluminum heatsinks used in electronics applications. They are formed by pushing aluminum through a die, resulting in a smooth surface with fins that are perpendicular to the base. The fins help to increase the surface area of the heatsink, which increases the cooling efficiency. Extruded aluminum heatsinks are available in several shapes and sizes, allowing for customization to fit any application.



2. Bonded Fin Aluminum Heatsinks

Bonded fin aluminum heatsinks are designed for applications with high thermal requirements. They are formed by bonding fins to a base that is made of aluminum or copper. The fins are made of aluminum and bonded to the base using an epoxy or soldering process. Bonded fin aluminum heatsinks have a higher thermal conductivity than extruded aluminum heatsinks, resulting in better cooling performance.



3. Skived Fin Aluminum Heatsinks

Skived fin aluminum heatsinks are designed for applications with high heat loads. They are formed by using a sharp blade to slice parallel fins from a block of aluminum. The fins are then bent perpendicular to the base to increase the surface area of the heatsink. Skived fin aluminum heatsinks have a higher thermal conductivity than extruded and bonded fin aluminum heatsinks, making them ideal for applications with high thermal requirements.



4. Folded Fin Aluminum Heatsinks

Folded fin aluminum heatsinks are designed for applications that require a high degree of customization. They are formed by folding a sheet of aluminum into a specific shape and then stamping the fins onto the surface of the heatsink, folded fin aluminum heatsinks are typically more expensive than other types of aluminum heatsinks but can be tailored to meet specific thermal requirements.



5. Pin Fin Aluminum Heatsinks

Pin fin aluminum heatsinks are designed for applications with high airflow or low-pressure drop requirements. They are manufactured by cross cut the extruded fins to achive the pin fins, the pins provide a large surface area for heat dissipation, allowing for efficient cooling. Pin fin aluminum heatsinks are typically low profile and lightweight, making them ideal for applications with limited space.



  Aluminum heatsink is a critical component of many electronic devices, providing efficient cooling to ensure reliable performance, there are several types of aluminum heatsinks available, each with their own unique advantages and disadvantages.







Varieties of heat sink

Thermal simulation

Factory and workshop



Certificates





  Sinda Thermal is a leading thermal manufacturer in China, our factory was founded in 2014, and located in Dongguan city, China, we are offering varieties of heatsinks and other precious metal parts. Our plant possesses 30 sets advanced and high precious CNC machines and stamping machines, also we have many testing and experiment instruments and professional engineering team, so our company can manufacture and provide high quality products with high precision and excellent thermal performance. Sinda Thermal is commited to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, and Madical. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9001 and ISO14001. Our company has been a partner with many customers for good quality, excellent service and competitive price. Sinda Thermal is a great heat sink manufacturer for the global customers .


FAQ
1. Q: Are you a trading company or manufacturer?
    A: We are a leading heat sink manufacturer, our factory has been founded over 8 years, we are professional and experienced.

2. Q: Can you provide OEM/ODM service?
    A: Yes, OEM/ODM are available.

3. Q: Do you have MOQ limit?
    A: No, we don't set up MOQ, prototype samples are available.

4. Q: What's the lead time of the production?
    A: For prototype samples, the lead time is 1-2 weeks, for mass production, the lead time is 4-6 weeks.

5. Q: Can I visit your factory?
    A: Yes, Welcome to Sinda Thermal.
