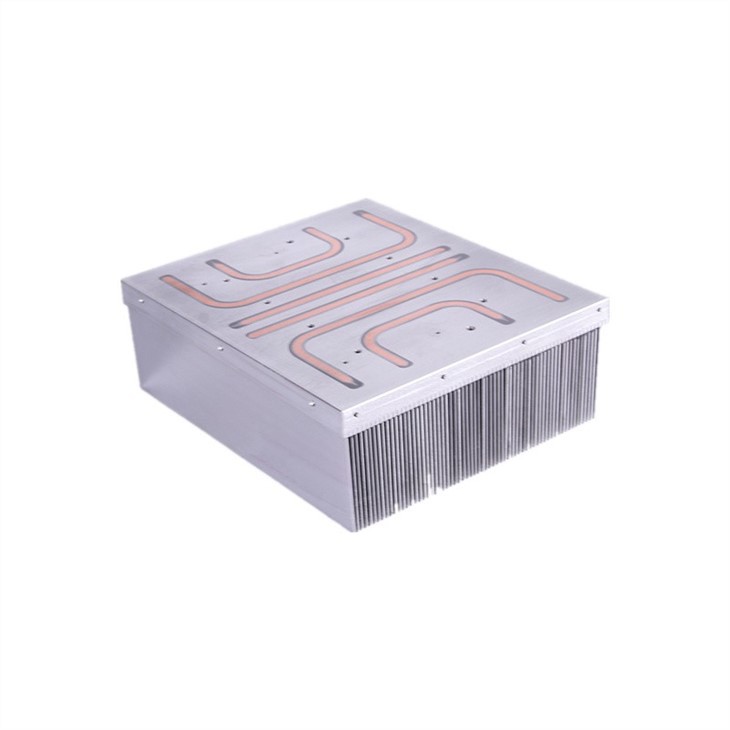

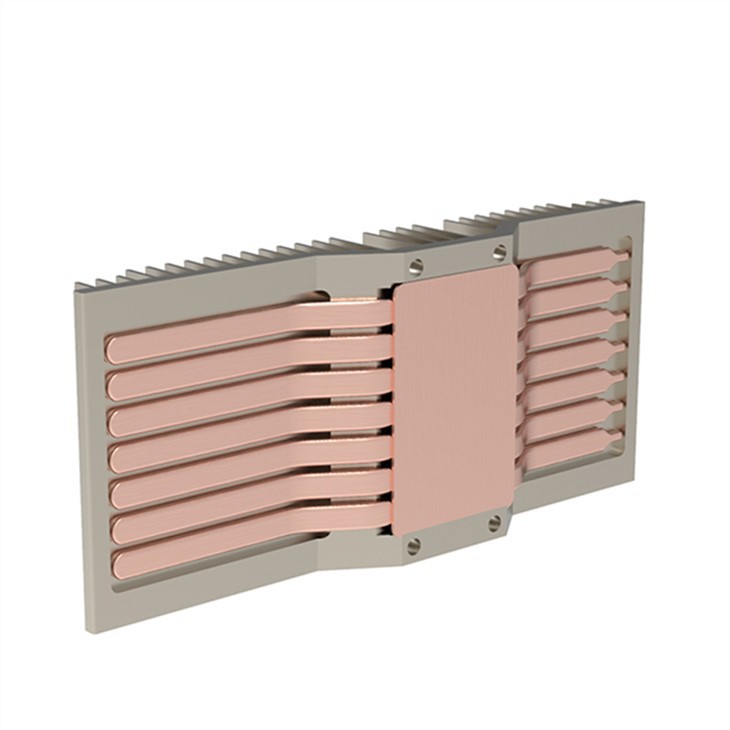

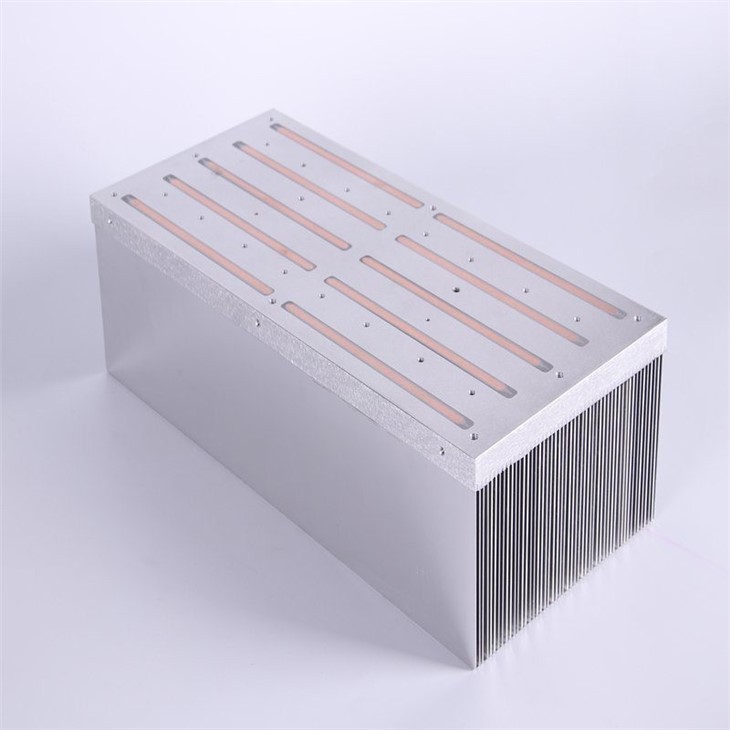

Heat Pipe IGBT Heat Sink

      For the high power electronics, insulated-gate bipolar transistors (IGBTs) are often utilized for their high efficiency and ability to handle high voltages and currents. However, when IGBTs are in operation, they generate a significant amount of heat, which can lead to overheating and cause damage to the device. To prevent this from happening, it's essential to have an efficient heat dissipation system in place.

What is an IGBT Heat Sink?

    An IGBT heat sink is a device used to dissipate heat generated by IGBTs. It's designed to absorb heat and transfer it away from the device, keeping it cool and preventing damage, the heat sink is typically made of a thermally conductive material, such as aluminum or copper, and is often combined with other cooling devices, such as fans or heat pipes.

When Should Heat Pipe Heat Sinks be Used for IGBTs?

    Heat pipe heat sinks are an advanced type of heat sink that provides even more efficient thermal performance than traditional heat sinks, heat pipe is a sealed, hollow tube filled with a liquid, often water or a refrigerant, when heat is applied to one end of the pipe, the liquid inside vaporizes, absorbing the heat, the vapor then moves to the opposite end of the pipe, where it condenses back into liquid, releasing the heat, this process continues, effectively transferring heat away from the IGBT and dissipate it to the surroundings.

    Heat pipe heat sinks are particularly beneficial in situations where traditional heat sinks aren't sufficient in managing the heat generated by IGBTs, for example, when IGBTs are used in high-power applications or in environments with limited airflow, heat pipe heat sinks can be essential, they can also be useful in situations where space is limited, as they take up less space compared to traditional heat sinks.

Other Cooling Methods for IGBTs

    While heat pipe heat sinks are an effective way to manage heat generated by IGBTs, there are other cooling methods that can be used in conjunction with heat sinks to keep IGBTs cool. These include:

Fans: Fans are commonly used for forced convection cooling, they work by blowing cool air over the heat sink, which helps to dissipate heat quickly.

Liquid cooling: Water cooling is another effective method of cooling IGBTs, it works by circulating water through a heat exchanger, which absorbs heat from the IGBT and dissipates it through the water.

Thermal pads: Thermal pads are thin sheets of thermally conductive material that are placed between the IGBT and the heat sink, they help to fill any gaps or irregularities between the IGBT and the heat sink, improving heat transfer.

Varieties of heat sink

Thermal simulation

Factory and workshop



Certificates

Sinda Thermal is a leading thermal manufacturer in China, our factory was founded in 2014, and located in Dongguan city, China, we are offering varieties of heatsinks and other precious metal parts. Our plant possesses 30 sets advanced and high precious CNC machines and stamping machines, also we have many testing and experiment instruments and professional engineering team, so our company can manufacture and provide high quality products with high precision and excellent thermal performance. Sinda Thermal is commited to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, and Madical. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9001 and ISO14001. Our company has been a partner with many customers for good quality, excellent service and competitive price. Sinda Thermal is a great heat sink manufacturer for the global customers .


FAQ
1. Q: Are you a trading company or manufacturer?
    A: We are a leading heat sink manufacturer, our factory has been founded over 8 years, we are professional and experienced.

2. Q: Can you provide OEM/ODM service?
    A: Yes, OEM/ODM are available.

3. Q: Do you have MOQ limit?
    A: No, we don't set up MOQ, prototype samples are available.

4. Q: What's the lead time of the production?
    A: For prototype samples, the lead time is 1-2 weeks, for mass production, the lead time is 4-6 weeks.

5. Q: Can I visit your factory?
    A: Yes, Welcome to Sinda Thermal.
