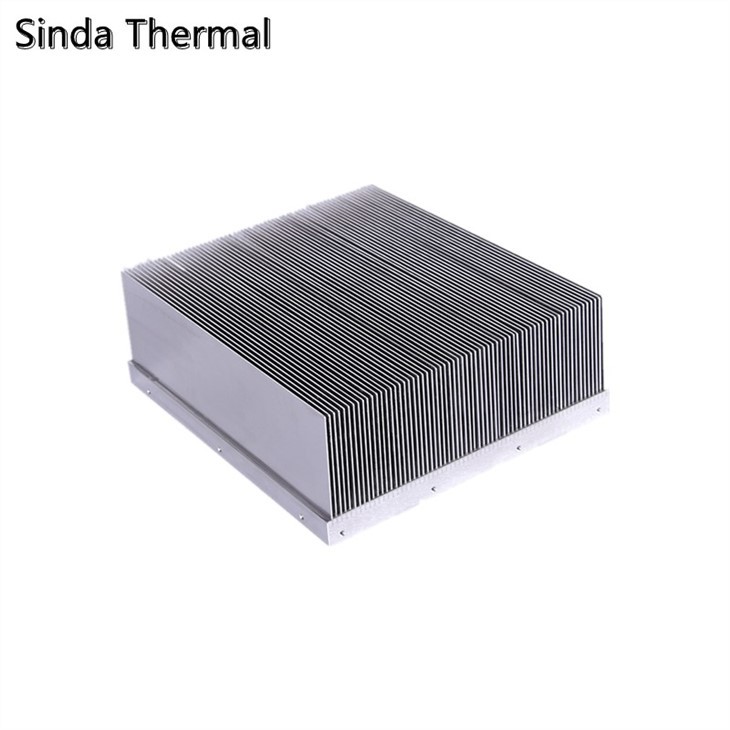

Aluminum Skiving Fin IGBT Heat Sink

     As the insulated gate bipolar transistors (IGBTs) is widely used in many industries, IGBTs are used to control electricity in various applications such as renewable energy systems, electric vehicles and industrial power supplies. Due to the operation of IGBTs generates heat, which can adversely affect their performance and reliability, the IGBT heat sink is an important part to dissipate heat and ensure the best operation of the IGBT.

   A heat sink is a passive cooling device that absorbs heat from a hot surface (such as an IGBT) and transfers it to the surrounding environment by conduction, convection or radiation, there are various types of radiators in the market such as stamped heat sinks, extruded heatsinks and skived fin heat sinks. Skiving fin heat sink is one of the most popular thermal solutions due to it has excellent thermal performance .

    The skiving process is peeling the metal sheets from the base, and interlocking the fins with designed pitch, skiving process enables high aspect ratio and fin density, the configuration ensure efficient heat dissipation by increasing the surface area in contact with the cooling medium. Compared with other types of heat sinks, aluminum skived fin heat sinks have the following advantages:

Improved thermal performance: The skiving process produces fins with thicknesses as low as 0.1 mm, resulting in a higher surface area to volume ratio, which means that aluminum skived fin heat sink can dissipate more heat per unit volume than other heat sinks. In addition, due to the high density of the fins, the heat transfer coefficient between the fins and the cooling medium is higher, which improves thermal performance.

Lightweight and compact: Aluminum skived fin heatsinks are lightweight due to their thin fins and compact size, which makes them ideal for applications where space and weight are considered, such as electric vehicles and portable electronics. Moreover their compact size allows easy integration into tight spaces and ensures efficient heat dissipation.

Cost-effective: The skiving process allows the creation of heat sinks with complex geometries without the need for expensive tooling, this makes it a cost-effective method of producing custom-designed heat sinks for specific applications.

Improved reliability: The thermal performance of an IGBT is critical to its reliability and lifetime, IGBT overheating can lead to thermal issue and failure, Aluminum skived fin heatsinks provide improved thermal performance to keep the IGBTs cool and extending their lifetime.

Varieties of heat sink

Thermal simulation

Factory and workshop



Certificates

    Sinda Thermal is a leading thermal manufacturer in China, our factory was founded in 2014, and located in Dongguan city, China, we are offering varieties of heatsinks and other precious metal parts. Our plant possesses 30 sets advanced and high precious CNC machines and stamping machines, also we have many testing and experiment instruments and professional engineering team, so our company can manufacture and provide high quality products with high precision and excellent thermal performance. Sinda Thermal is commited to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, and Madical. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9001 and ISO14001. Our company has been a partner with many customers for good quality, excellent service and competitive price. Sinda Thermal is a great heat sink manufacturer for the global customers .


FAQ
1. Q: Are you a trading company or manufacturer?
    A: We are a leading heat sink manufacturer, our factory has been founded over 8 years, we are professional and experienced.

2. Q: Can you provide OEM/ODM service?
    A: Yes, OEM/ODM are available.

3. Q: Do you have MOQ limit?
    A: No, we don't set up MOQ, prototype samples are available.

4. Q: What's the lead time of the production?
    A: For prototype samples, the lead time is 1-2 weeks, for mass production, the lead time is 4-6 weeks.

5. Q: Can I visit your factory?
    A: Yes, Welcome to Sinda Thermal.
