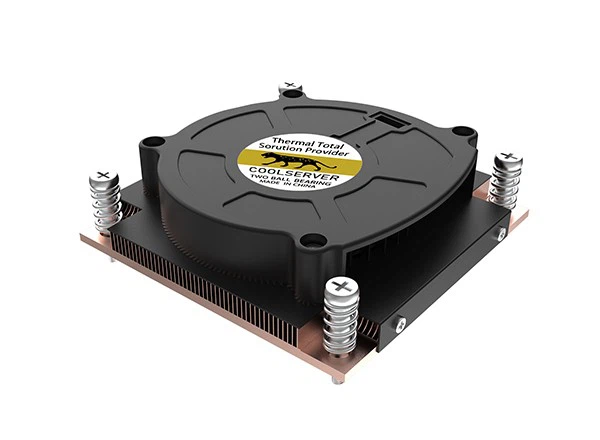

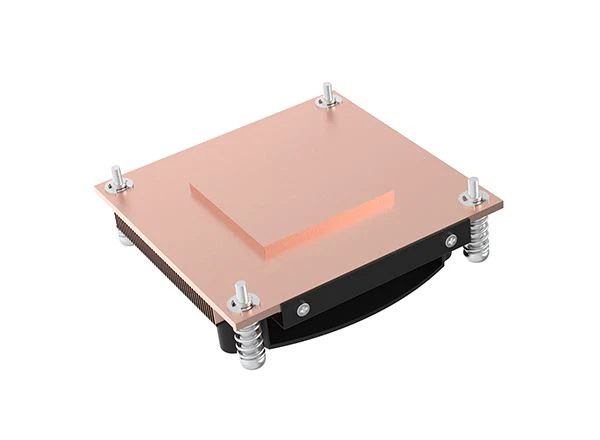

Copper Skived Fin 1U Server CPU Heat Sink

Please click the Navigation line ''visit the factory online'' to visit our factory

   With the rapid development of enterprise informatization, the demand for servers is also increasing. How to plan and implement the servers reasonably in the limited space of the computer room, we have to pay attention to these problems. Because of its flexible configuration and high computing density, rack-mounted servers have advantages over tower servers in terms of saving energy costs, maintenance costs, and environmental costs. These advantages provide a wide range of development space for the construction of large and medium-sized information systems for 1U servers.

  So what is a 1U server? The so-called 1U server is a high-availability and high-density low-cost server platform, which is specially designed for special application industries and high-density computer environments. They can start their own operating systems through the local hard disk, such as Windows NT/2000/2003, Linux, Solaris, etc., similar to an independent server. In this mode, each motherboard runs its own system, serving different user groups specified, and is not related to each other. However, we can still use the system software to integrate these motherboards into a server cluster.

  Since the frequency of the CPU used by the server is usually high, some have dual CPUs or even multiple CPUs, coupled with high-speed SCSI hard disks and high-power power supplies, these components usually generate a lot of heat, so a high efficiency server heatsink is essential.

  As we all know that copper is an extraordinary thermal conductor, it can absorb and spread the heat from the server CPU rapidly. so a full copper skived fin 1U server heatsink is quite popular in the server industry.

  In simple terms, skiving technology is to cut a whole piece of aluminum or copper according to the specified heatsink shape, and use a skiving machine to produce the fins with a standard spacing and a certain thickness and height. Due to the use of high-precision cutting technology and integrated forming, compared with other processing techniques, the same volume of raw materials can cut a larger heat dissipation area, and the heat transfer performance is more stable. Under the same conditions, the heat dissipation effect is much better than extruded heatsink. The efficiency of the radiator is more than 1.5 to 2 times, which can prolong the service life of the devices by better thermal performance.

  Compared with extruded heatsink, the skived fin heatsink can be designed with smaller space and thinner fins, so it is mostly used for high power devices. However, due to the skiving process, each radiator needs to be manufactured from a metal bar, which means that we have to optimize each specifications of the skived fin heatsink in the early stage of each project design, including the thickness of the base, the height and thickness of the fins, the fin space and other specifications.

Product specifications

Varieties of heat sink

Thermal simulation

Factory and workshop

Certificates

  Sinda Thermal is a leading thermal manufacturer in China, our factory was founded in 2014, and located in Dongguan city, China, we are offering varieties of heatsinks and other precious metal parts. Our plant possesses 30 sets advanced and high precious CNC machines and stamping machines, also we have many testing and experiment instruments and professional engineering team, so our company can manufacture and provide high quality products with high precision and excellent thermal performance. Sinda Thermal is devoted to a range of heat sinks which are widely used in new power supply, New energy vehicles, Telecommunications, Servers, IGBT, and Madical. All the products accord with Rohs/Reach standard, and the factory is qualified by ISO9001 and ISO14001. Our company has been a partner with many customers for good quality, excellent service and competitive price. Sinda Thermal is a great heat sink manufacturer for the global customers .


FAQ
1. Q: Are you a trading company or manufacturer?
    A: We are a leading heat sink manufacturer, our factory has been founded over 8 years, we are professional and experienced.

2. Q: Can you provide OEM/ODM service?
    A: Yes, OEM/ODM are available.

3. Q: Do you have MOQ limit?
    A: No, we don't set up MOQ, prototype samples are available.

4. Q: What's the lead time of the production?
    A: For prototype samples, the lead time is 1-2 weeks, for mass production, the lead time is 4-6 weeks.

5. Q: Can I visit your factory?
    A: Yes, Welcome to Sinda Thermal.
