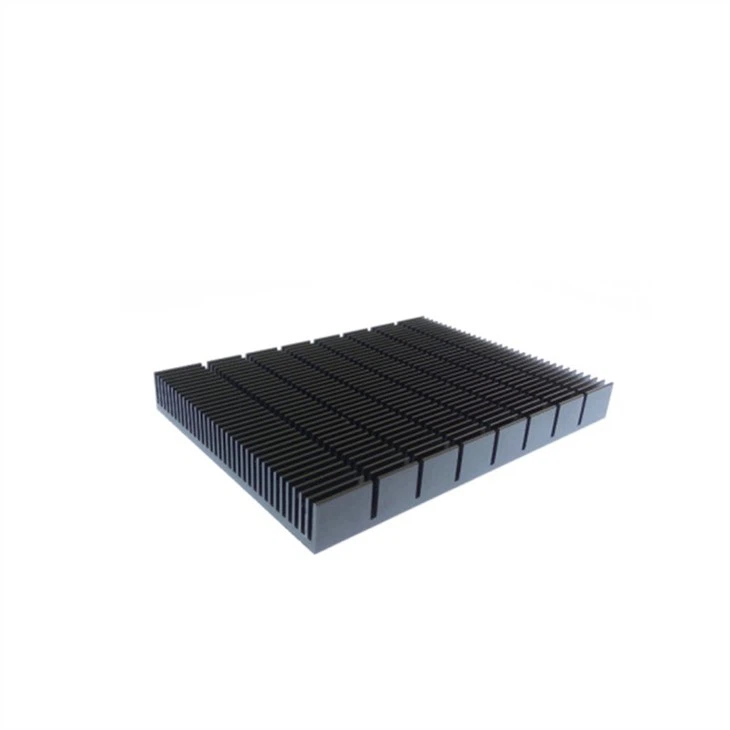

Passive Heatsink For BGA

  As electronic devices such as computers, smartphones, and gaming consoles are becoming more and more advanced, so the demand for high-performance electronic components is increasing as well. However, the high power electronic components will generate huge amount of heat, the heat could affect the working efficiency of the components and even damage the electronic parts. As heat is the primary enemy of electronic devices as it can lead to their malfunction and even irreparable damage, so a thermal solution to dissipate the heat generated by these components is necessary, passive heat sink is one of the most effective thermal solutions. Passive heat sink is the most commonly used thermal device in electronic devices, it requires no power source or any moving parts, making them quieter and more reliable than their active counterparts.





Why does a BGA need a passive heat sink?

  A Ball Grid Array (BGA) is a type of chip package used in electronic devices that have high-density circuits, BGAs have several advantages such as higher component density, lower power consumption, and better thermal performance compared to other packaging types. However, with increased device density comes the challenge of heat dissipation. The heat generated by the BGA needs to be dissipated to prevent damage to the device, the BGA's small package size means that there is limited space for an active cooling device such as a fan or a liquid cooling system, so a passive heat sink is the most appropriate solution for dissipating the heat generated by the BGA.





The main types of passive heat sink



1. Extruded heat sink

  Extruded heat sink is the most commonly used heat sink in the electronics industry, it is made by pushing aluminum or copper through a die to create a specific shape, this process allows for customization of the heat sink's design, including the number of fins and the overall size. Extruded heat sinks have good thermal performance and can dissipate heat efficiently.





2. Folded fin heat sink

Folded fin heat sink is made by stamping a rolled metal sheet into shape. The fins are formed by stamping and folding the metal sheet, which creates an extended surface area for better heat dissipation.

Folded fin heat sink has a compact design and are ideal for devices that require a low profile. it is also customizable, making it possible to create different fin shapes and sizes for optimizing heat dissipation.





3. Stacked fin heat sink

Stacked fin heat sink is made by stamping aluminum or copper sheets into stacked fin assembly, the sheets are interlocked with designed pitch and zippered together to create the fins assembly. Stacked fin heat sink has a large surface area and excellent thermal performance, it is also customizable, making it suitable for devices with specific cooling requirements.
